Chieftek (CPC)

Chieftek (CPC) Compact Linear Motor Stage

Chieftek (CPC) Compact Linear Motor Stage CLS is a series of structurally compact linear motor modules. It tightly integrates a ironless linear motor, linear guide, optical scale and base. With its zero cogging force, high acceleration, high precision and smooth motion. It is highly suitable for use in applications such as AOI equipment, laser cutters, pick-place and scanning.

Compared to traditional ball screw modules, CLS series with direct drive coupling provides superior precision and velocity under many thrust output conditions. At the same time providing the same highly integrated mechanical design. Enabling increased productivity and reliability as a direct replacement.

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek Compact Linear Motor Stage

Chieftek (CPC) MR Miniature Linear Guide

Chieftek (CPC) MR Miniature Linear Guide produce there high quality MR miniature linear rail in Taiwan to suit both European and Japanese standards. Custom specials are no problem either for this quality supplier.

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek (CPC) MR Miniature Linear Guide

Chieftek (CPC) ST Series Linear Bearings

Chieftek (CPC) ST Series Linear Bearings has high load and high moment capacity ST Miniature Stroke Slide series incorporate with the design of two rows of ball, the ball track has Gothic profile design with 45 degree contact angle to attain the effect of equal load capacity in all mono block provide more space for the larger rolling elements, enhance the load and moment capacity. High running accuracy and smoothness of the steel balls allows the ST Miniature Stroke Slide series roll on the rail without re-circulation, such brings an excellent running behaviour, smoothness, low friction, and high accuracy without vibration.

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek (CPC) MR Series Linear Bearings

Chieftek (CPC) MR Series Miniature Precision stainless steel guides with reinforcement plates provide high robustness.

Between the reinforcement plate and rail is a gap seal design, so the reinforcement plates also provide a scraper function.

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek (CPC) MR Miniature Linear Guide

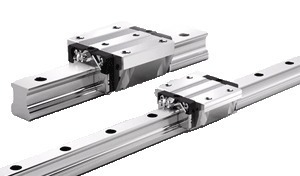

Chieftek (CPC) Linear Bearings

Chieftek (CPC) Linear Bearings AR/HR Ball type linear guide series incorporates four rows of ball recirculation design. O-shape arrangement with 45 degree contact angle between raceway and steel balls, efficiently increase rigidity and torsion resistance (shock absorption).

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek Linear Bearings

Chieftek (CPC) Linear Motors

Chieftek (CPC) Linear Motors has the following features:

  • CPC linear motors are designed with overlapping coils to provide high force density
  • CPC uses a vacuum-molding process to eliminate air bubbles from the finished epoxy mold. This results in strengthened epoxy product that will enhance its lifetime
  • CPC linear motors are designed to have stable system
  • CPC linear motors are very efficient at dissipating waste heat, resulting in the ability to receive and utilize large currents for an increase in power

Manufactured by: Chieftek
Sold and Serviced by Motion Technologies Pty Limited

Chieftek Linear Motors
